• Tow/haul mode selector, instrument panel-mounted
• Rear-wheel drive
• Battery, 600 cold-cranking amps, maintenance-free with rundown protection and retained accessory power
• Alternator, 150 amps
• Frame, ladder-type
• Suspension, front independent with coil springs and stabilizer bar
• Suspension, rear hypoid drive axle with multi-leaf springs
• Steering, power
• Brakes, 4-wheel antilock, 4-wheel disc
• Fuel tank capacity, mid-frame and approximately 31 gallons (117.3L)
• Exhaust, aluminized stainless-steel muffler and tailpipe

• Wheels, 4 - 16" x 6.5" (40.6 cm x 16.5 cm) steel includes Gray center caps and steel spare
• Tires, front LT245/75R16E all-season, blackwall
• Tires, rear LT245/75R16E all-season, blackwall
• Body, standard
• Door, swing-out passenger-side, 60/40 split
• Tire, spare LT245/75R16 all-season, blackwall
• Bumpers, front and rear painted Black with step-pad
• Grille, Black composite
• Headlamps, dual halogen composite
• Mirrors, outside heated power-adjustable, Black, manual-folding
• Glass, Solar-Ray deep-tinted (all windows except light-tinted glass on windshield and driver- and front passenger-side glass)
• Glass, swing-out side door windows
• Glass, swing-out rear cargo door windows
• Glass, enhanced-technology, rearmost side windows. 3-layer special glass is designed to help reduce the risk of ejection during a crash
• Glass, full-body window package (Includes (A18) swing-out rear cargo door window glass and (A19) swing-out side door window glass.)
• Wipers, front intermittent wet-arm with pulse washers
• License plate kit, front

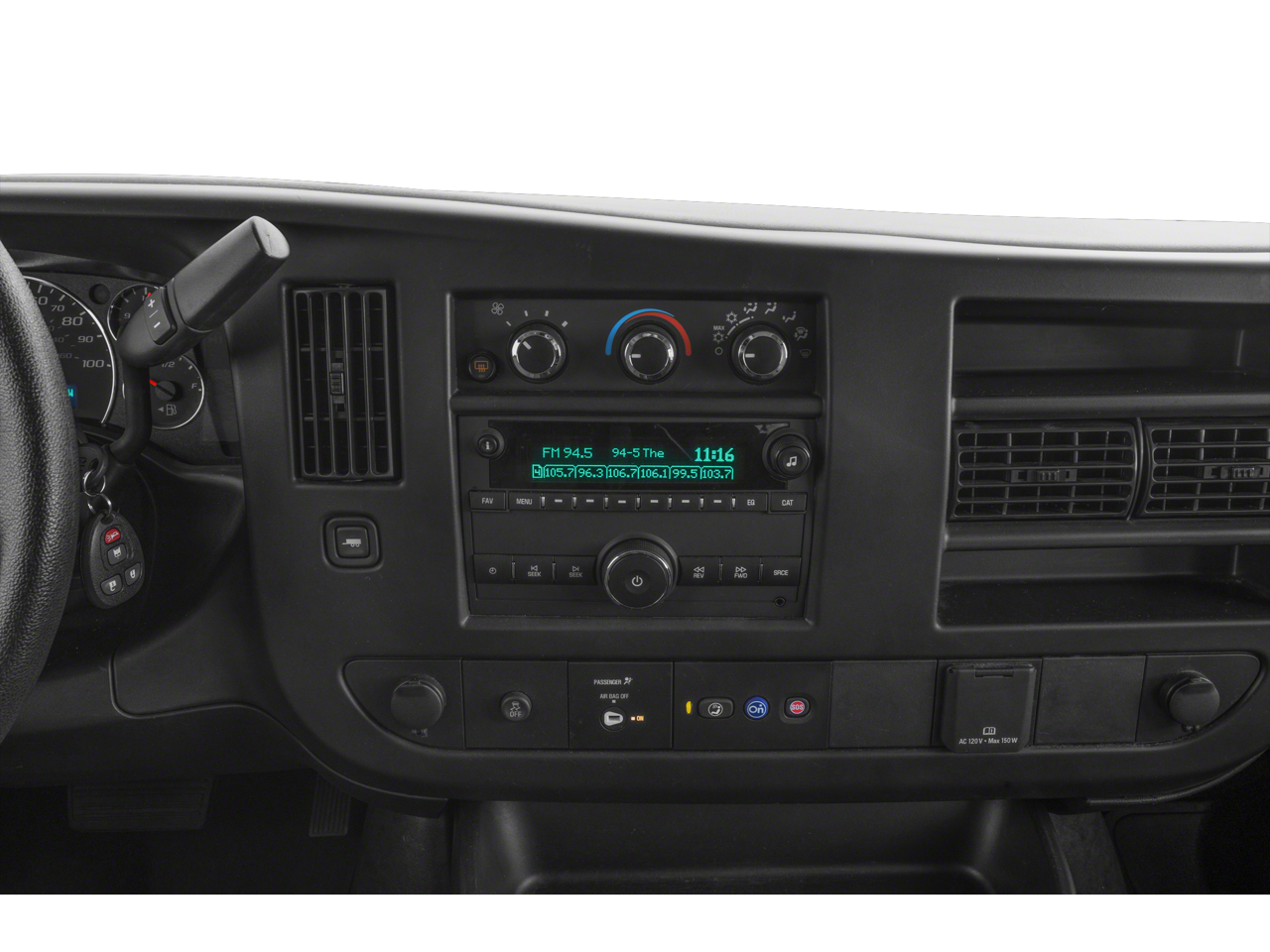

• Audio system, AM/FM stereo with MP3 player seek-and-scan, digital clock, TheftLock, random select, auxiliary jack and 2 front door speakers (Not available with (U2K) SiriusXM Radio.)
• Wi-Fi Hotspot capable (Included and only available with (UE1) OnStar. Terms and limitations apply. See onstar.com or dealer for details.)

• Seats, front bucket with vinyl trim and head restraints, includes inboard armrests (Requires (93W) interior trim. When ordering a seating arrangement that includes rear seats, includes rear bench seats with vinyl trim. Head restraints are not available on rear bench seats.)

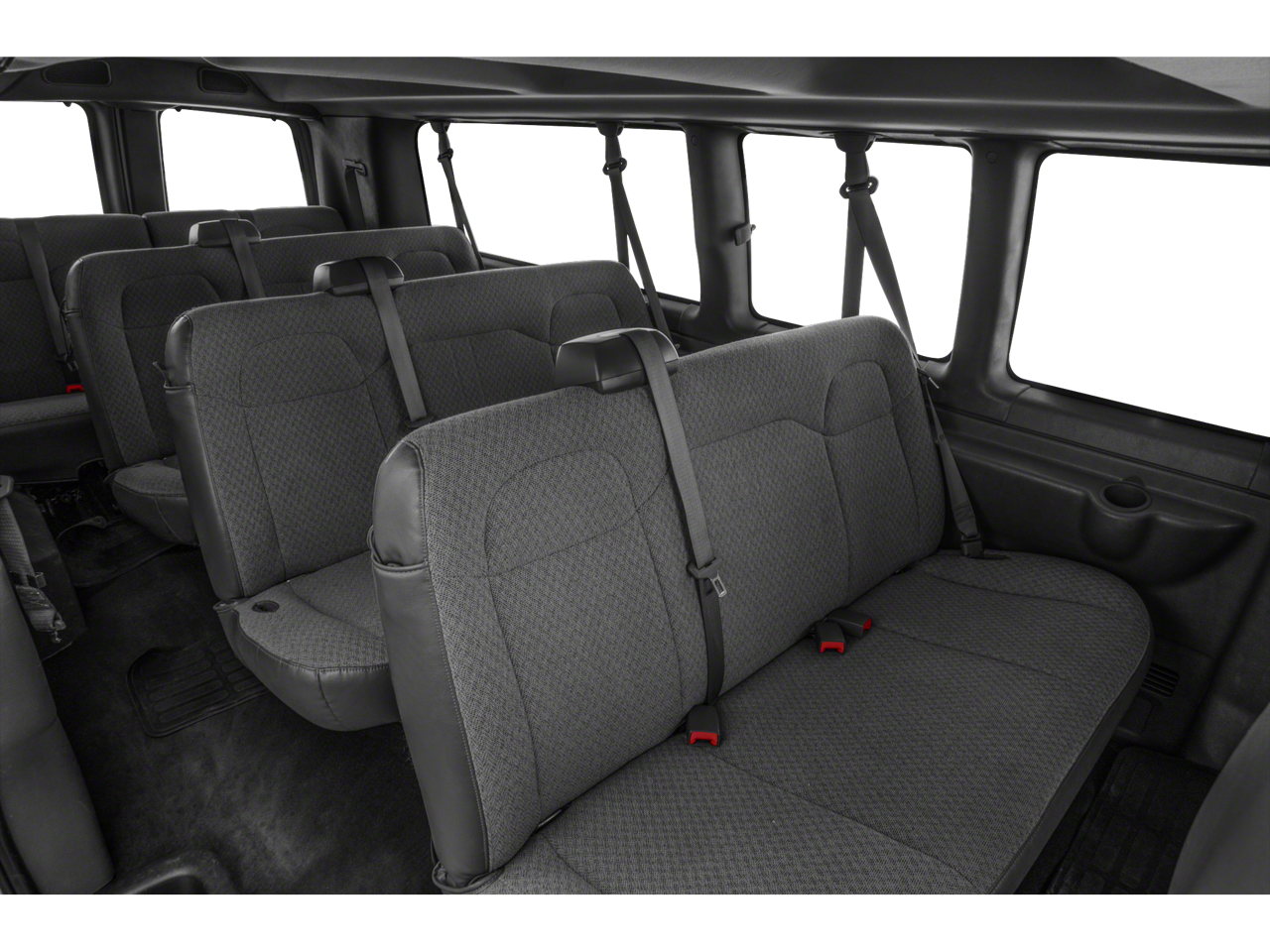

• Seating, 12-passenger, (2-3-3-4 seating configuration) 4-passenger seat is a 50/50 split, 2-piece configuration
• Floor covering, full-length Black rubberized-vinyl
• Steering wheel steel sleeve column with theft-deterrent locking feature, Black
• Steering column, Tilt-Wheel
• Oil life monitor
• Warning tones, headlamp on and key-in-ignition
• Compass, 8-point digital located in the Driver Information Center
• Windows, power (Included with (ZQ2) Power Convenience Package.)
• Door locks, power with lock-out protection (NOTE: Does not include (ATG) Remote Keyless Entry. (ATG) Remote Keyless Entry must be ordered separately.)
• Cruise control
• Theft-deterrent system, vehicle, PASS-Key III
• Power outlet, 120-volt
• Air conditioning, single-zone manual
• Air conditioning, rear
• Heater, rear auxiliary
• Defogger, front and side windows
• Mirror, inside rearview, with Rear Vision Camera display
• Headliner, cloth
• Visors, driver and front passenger, padded with cloth trim and dual vanity mirrors, illuminated on passenger-side
• Assist handles, driver and right-front passenger
• Lighting, interior with 2 dome lights defeat switch and door handle-activated switches
• Lighting, auxiliary with reading and underhood lights
• Chevrolet Connected Access capable (Included and only available with (UE1) OnStar. Subject to terms. See onstar.com or dealer for details.)

• StabiliTrak, traction assistance and vehicle stability enhancement system
• Hill Start Assist
• Door beams, steel-side
• Daytime Running Lamps
• Rear Vision Camera (Display is included with (DRJ) Inside rearview mirror.)
• Airbags, frontal, front driver and right front passenger includes passenger-side airbag deactivation switch (Always use seat belts and child restraints. Children are safer when properly secured in a rear seat in the appropriate child restraint. See the Owner's Manual for more information.)
• Airbags, seat-mounted side-impact for driver and right-front passenger and roof-rail mounted head-curtain provides coverage for outboard seating positions for first 3-rows only. Enhanced-technology glass is provided for fourth row with (ZX5) 12-passenger seating and fourth and fifth rows with (ZP3) 15-passenger seating (Always use seat belts and child restraints. Children are safer when properly secured in a rear seat in the appropriate child restraint. See the Owner's Manual for more information.)
• Airbag deactivation switch, frontal passenger-side (Always use seat belts and child restraints. Children are safer when properly secured in a rear seat in the appropriate child restraint. See the Owner's Manual for more information.)
• OnStar and Chevrolet connected services capable (Terms and limitations apply. See onstar.com or dealer for details.)
• Child seat anchors all three passenger rear seats have two anchors for outboard seating positions and tethers for two seating positions. See the Owner's Manual for more information
• Tire Pressure Monitoring System (does not apply to spare tire)

ENGINE, 4.3L V6 WITH DIRECT INJECTION ($0)

and Variable Valve Timing includes aluminum block construction (276 hp @ 5200 rpm 298 lb-ft of torque @ 3900 rpm) (STD)

• Engine
• 4.3L V6 with Direct Injection and Variable Valve Timing
• includes aluminum block construction (276 hp @ 5200 rpm
• 298 lb-ft of torque @ 3900 rpm) (Reference the Engine/Axle page for availability.)
• Rear axle
• 3.42 ratio (Reference the Engine/Axle page for availability.)
• GVWR
• 9600 lbs. (4354 kg) (Reference the Engine/Axle page for availability.)
• Cooling
• external engine oil cooler
• Tow/haul mode selector
• instrument panel-mounted
• Rear-Wheel Drive
• Battery
• 600 cold-cranking amps
• maintenance-free with rundown protection and retained accessory power
• Alternator
• 150 amps
• Frame
• ladder-type
• Suspension
• front independent with coil springs and stabilizer bar
• Suspension
• rear hypoid drive axle with multi-leaf springs
• Steering
• power
• Brakes
• 4-wheel antilock
• 4-wheel disc
• Fuel tank capacity
• mid-frame and approximately 31 gallons (117.3L)
• Exhaust
• aluminized stainless-steel muffler and tailpipe
• Tires
• front LT245/75R16E all-season
• blackwall
• Tires
• rear LT245/75R16E all-season
• blackwall
• Body
• standard
• Door
• swing-out passenger-side
• 60/40 split
• Tire
• spare LT245/75R16 all-season
• blackwall
• Bumpers
• front and rear painted Black with step-pad
• Grille
• Black composite
• Headlamps
• dual halogen composite
• Mirrors
• outside heated power-adjustable
• Black
• manual-folding
• Glass
• Solar-Ray deep-tinted (all windows except light-tinted glass on windshield and driver- and front passenger-side glass)
• Glass
• swing-out side door windows
• Glass
• swing-out rear cargo door windows
• Glass
• enhanced-technology
• rearmost side windows. 3-layer special glass is designed to help reduce the risk of ejection during a crash
• Glass
• full-body window package (Includes (A18) swing-out rear cargo door window glass and (A19) swing-out side door window glass.)
• Wipers
• front intermittent wet-arm with pulse washers
• License plate kit
• front
• Console
• engine cover with open storage bin
• Cup holders
• 3 on the engine console cover
• Floor covering
• full-length Black rubberized-vinyl
• Steering wheel steel sleeve column with theft-deterrent locking feature
• Black

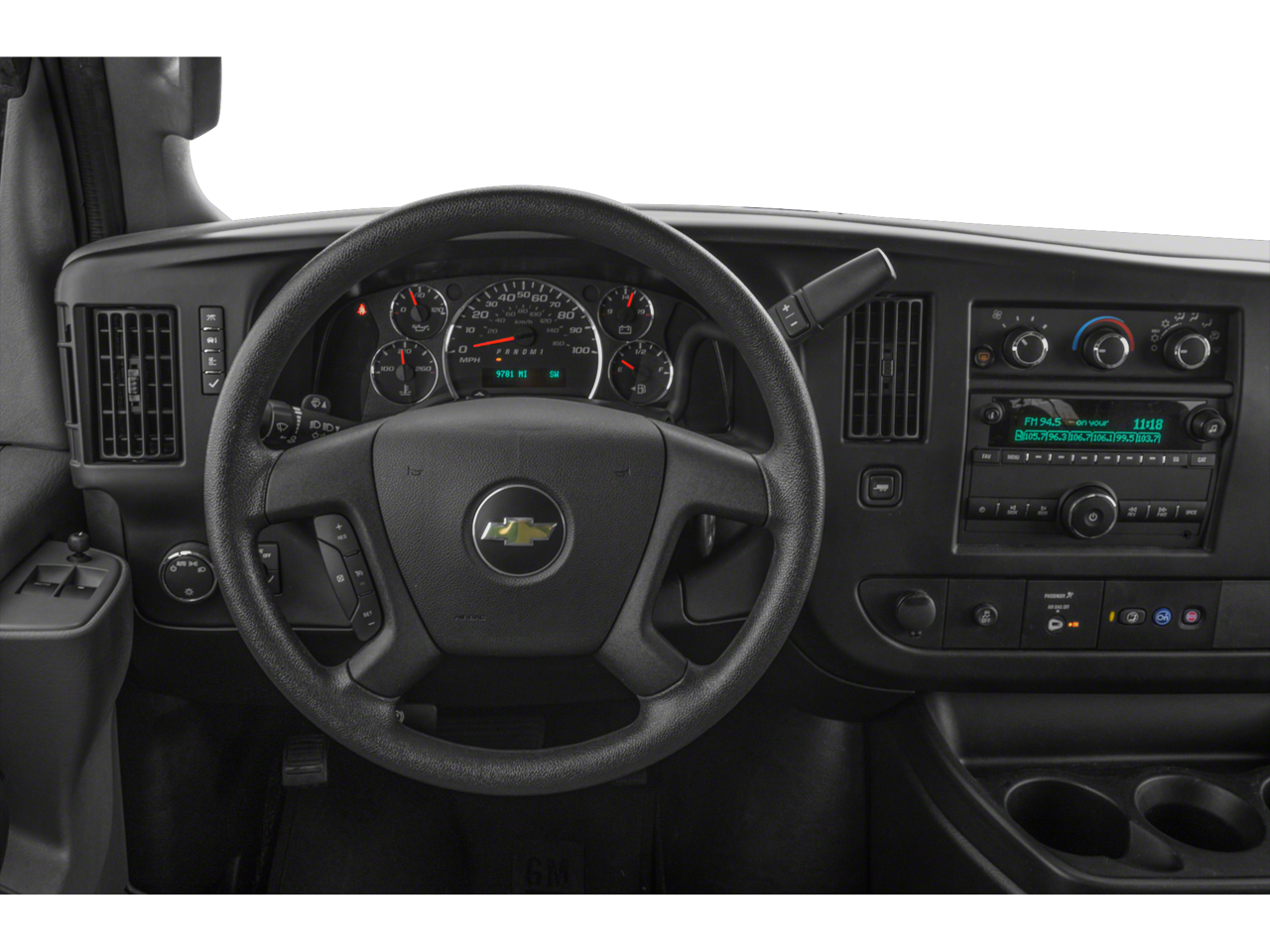

• Instrumentation
• analog with speedometer
• odometer with trip odometer
• fuel level
• voltmeter
• engine temperature and oil pressure
• Oil life monitor
• Warning tones
• headlamp on and key-in-ignition
• Compass
• 8-point digital located in the Driver Information Center
• Theft-deterrent system
• vehicle
• PASS-Key III
• Heater
• rear auxiliary
• Defogger
• front and side windows
• Headliner
• cloth
• Visors
• driver and front passenger
• padded with cloth trim and dual vanity mirrors
• illuminated on passenger-side
• Assist handles
• driver and right-front passenger
• Lighting
• interior with 2 dome lights defeat switch and door handle-activated switches
• Lighting
• auxiliary with reading and underhood lights
• Chevrolet Connected Access capable (Included and only available with (UE1) OnStar. Subject to terms. See onstar.com or dealer for details.)
• StabiliTrak
• traction assistance and vehicle stability enhancement system
• Brake/transmission shift interlock for automatic transmissions
• Hill start assist
• Door beams
• steel-side
• Daytime running lamps
• Airbags
• seat-mounted side-impact for driver and right-front passenger and roof-rail mounted head-curtain provides coverage for outboard seating positions for first 3-rows only. Enhanced-technology glass is provided for fourth row with (ZX5) 12-passenger seating and fourth and fifth rows with (ZP3) 15-passenger seating (Always use seat belts and child restraints. Children are safer when properly secured in a rear seat in the appropriate child restraint. See the Owner's Manual for more information.)
• Child seat anchors all three passenger rear seats have two anchors for outboard seating positions and tethers for two seating positions. See the Owner's Manual for more information

• Vehicle
• Rear Door Type: Dual Swing-Out
• Electrical
• Cold Cranking Amps @ 0° F (Primary): 600
• Maximum Alternator Capacity (amps): 150
• Maximum Alternator Watts: - TBD -
• Cooling System
• Total Cooling System Capacity (qts): - TBD -
• Weight Information
• Gross Axle Wt Rating - Front (lbs): 4300
• Gross Axle Wt Rating - Rear (lbs): 6084
• Curb Weight - Front (lbs): 3189
• Curb Weight - Rear (lbs): 2984
• Gross Vehicle Weight Rating Cap (lbs): 9600
• Gross Combined Wt Rating (lbs): 15000
• Trailering
• Dead Weight Hitch - Max Trailer Wt. (lbs): 5000
• Dead Weight Hitch - Max Tongue Wt. (lbs): 500
• Wt Distributing Hitch - Max Trailer Wt. (lbs): 6300
• Wt Distributing Hitch - Max Tongue Wt. (lbs): 630
• Maximum Trailering Capacity (lbs): 9200
• Suspension
• Suspension Type - Front: Coil Spring
• Suspension Type - Rear: Hypoid Drive
• Spring Capacity - Front (lbs): 4300
• Spring Capacity - Rear (lbs): 6084
• Axle Type - Front: Independent
• Axle Type - Rear: Full-Floating
• Axle Capacity - Front (lbs): 4300
• Axle Capacity - Rear (lbs): 6084
• Axle Ratio (:1) - Rear: 3.42
• Shock Absorber Diameter - Front (mm): - TBD -
• Shock Absorber Diameter - Rear (mm): - TBD -
• Stabilizer Bar Diameter - Front (in): 1.38
• Brakes
• Brake Type: Pwr
• Brake ABS System: 4-Wheel
• Disc - Front (Yes or ): Yes
• Disc - Rear (Yes or ): Yes
• Front Brake Rotor Diam x Thickness (in): 12.8 x 1.5
• Rear Brake Rotor Diam x Thickness (in): 13 x 1.1
• Tires
• Front Tire Order Code: XLP
• Rear Tire Order Code: YLP
• Spare Tire Order Code: ZLP
• Front Tire Size: LT245/75R16E
• Rear Tire Size: LT245/75R16E
• Spare Tire Size: LT245/75R16E
• Front Tire Capacity (lbs): 2205
• Rear Tire Capacity (lbs): 3042
• Spare Tire Capacity (lbs): - TBD -
• Revolutions/Mile @ 45 mph - Front: - TBD -
• Revolutions/Mile @ 45 mph - Rear: - TBD -
• Revolutions/Mile @ 45 mph - Spare: - TBD -
• Wheels
• Front Wheel Size (in): 16 x 6.5
• Rear Wheel Size (in): 16 x 6.5
• Spare Wheel Size (in): 16 x 6.5
• Front Wheel Material: Steel
• Rear Wheel Material: Steel
• Spare Wheel Material: Steel
• Steering
• Steering Type: Pwr
• Steering Ratio (:1), On Center: 17.2
• Steering Ratio (:1), At Lock: 17.2
• Turning Diameter - Curb to Curb (ft): 54.5
• Turning Diameter - Wall to Wall (ft): - TBD -
• Frame
• Frame Type: Ladder-Type
• Fuel Tank
• Fuel Tank Capacity, Approx (gal): 31
• Fuel Tank Location: Mid-Frame
• Doors
• Side Door Type: Swing-Out
• Exterior Dimensions
• Wheelbase (in): 155.1
• Length, Overall (in): 243.95
• Width, Max w/o mirrors (in): 79.25
• Height, Overall (in): 84.7
• Overhang, Front (in): 39.7
• Overhang, Rear w/bumper (in): 49.13
• Ground to Top of Load Floor (in): 32.2
• Ground Clearance, Front (in): 9.45
• Ground Clearance, Rear (in): 8.6
• Rear Door Opening Height (in): 46
• Rear Door Opening Width (in): 53.42
• Side Door Opening Height (in): 46.7
• Side Door Opening Width (in): - TBD -
• Step Up Height - Front (in): 27.25
• Step Up Height - Side (in): 27.85
• Cargo Area Dimensions
• Cargo Area Length @ Floor to Console (in): 173.6
• Cargo Area Length @ Floor to Seat 1 (in): 146.05
• Cargo Area Length @ Floor to Seat 2 (in): - TBD -
• Cargo Area Length @ Floor to Seat 3 (in): - TBD -
• Cargo Area Length @ Floor to Seat 4 (in): - TBD -
• Cargo Area Width @ Beltline (in): - TBD -
• Cargo Box Width @ Wheelhousings (in): 50.9
• Cargo Box (Area) Height (in): 51.8
• Cargo Volume to Seat 1 (ft³): 255.5
• Cargo Volume to Seat 2 (ft³): - TBD -
• Cargo Volume to Seat 3 (ft³): - TBD -
• Cargo Volume to Seat 4 (ft³): - TBD -
• Interior Dimensions
• Passenger Capacity: 12
• Front Head Room (in): 40.85
• Front Leg Room (in): 41.35
• Front Shoulder Room (in): 68.85
• Front Hip Room (in): 65.48
• Second Head Room (in): 38.42
• Second Leg Room (in): 36.3
• Second Shoulder Room (in): 68.6
• Second Hip Room (in): 65.62
• Third Head Room (in): 38.5
• Third Leg Room (in): 36.58
• Third Shoulder Room (in): 65.75
• Third Hip Room (in): 63.25
• Fourth Head Room (in): 38.3
• Fourth Leg Room (in): 36.58
• Fourth Shoulder Room (in): 69.1
• Fourth Hip Room (in): 65.65
• Summary

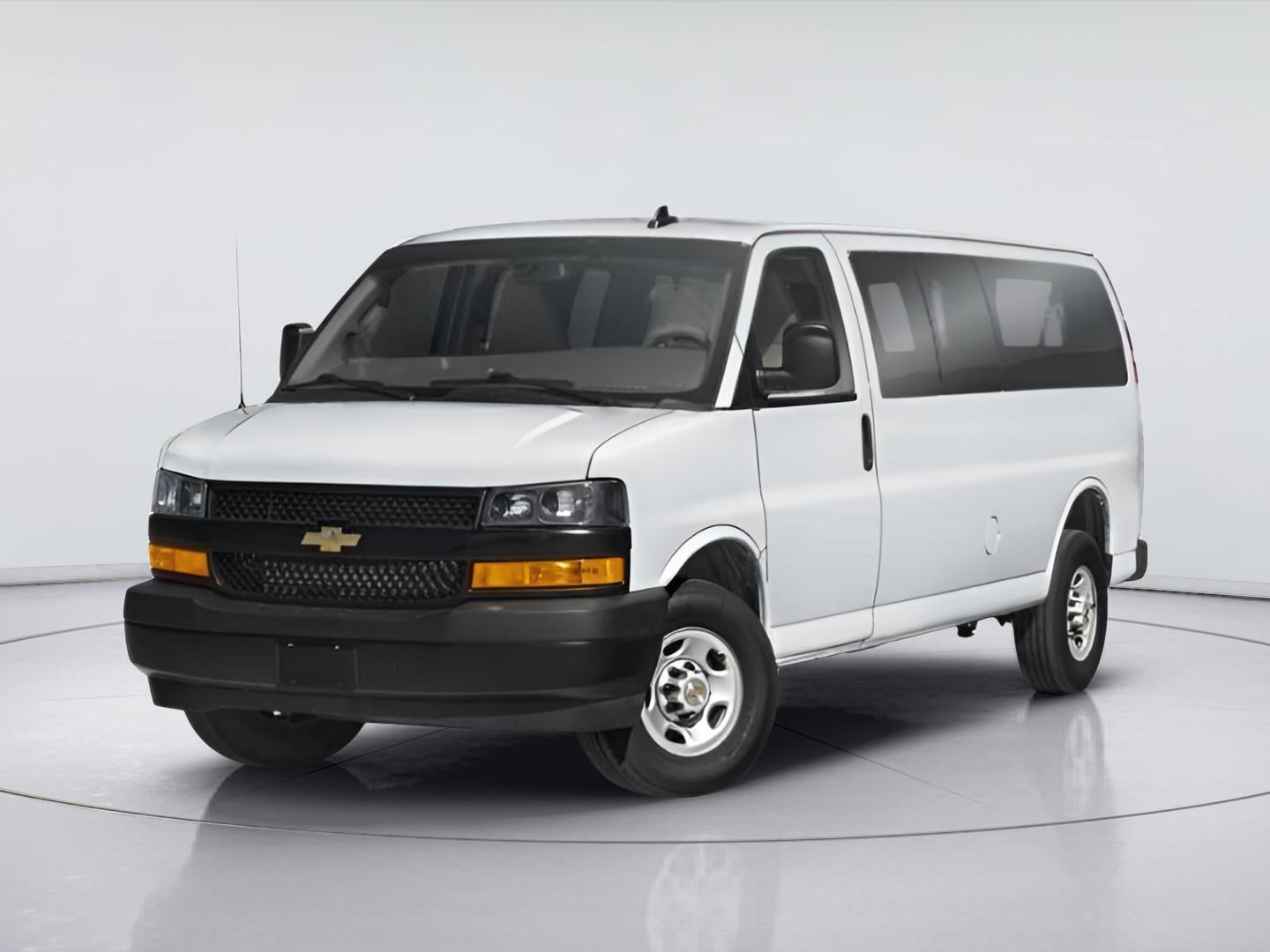

• Vehicle Name: Chevrolet Express Passenger
• Body Style: Passenger Van
• Body Code: ZW9
